Introduction

PA12-GF

As a kind of 3D printing material, PA12-GF produce stiff, functional parts:
• 40% glass bead filled thermoplastic material with both
optimal mechanical properties and high reusability.1
• Provides dimensional stability along with repeatability.2
•Ideal for applications requiring high stiffness like
enclosures and housings, fixtures and tooling.
Quality at a low cost per part
• Produce at a low cost per part and reduce your total cost
of ownership.3
• Less waste—reuse surplus powder batch after batch and
get functional parts, no throwing away anymore.1
• Get consistent performance while achieving up to 70%
surplus powder reusability.4
• Optimize cost and part quality—cost-efficient material
with high surplus powder reusability.1
Engineered for HP Multi Jet Fusion technology
• Designed for production of functional parts across a
variety of industries.
• Provides the best balance between performance and
reusability.5
• Engineered to produce common glass bead applications
with detail and dimensional accuracy.

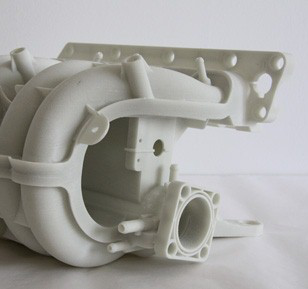

Object model printed with PA12-GF material

Tensile strength, max load, XY, XZ, YX, YZ 30 MPa/4351 psi
Tensile strength, max load, ZX, XY 30 MPa/4351 psi
Tensile modulus 2500 MPa/363 ksi
Heat deflection temperature (@ 0.45 MPa, 66 psi), XY, XZ, YX, YZ 174° C/345° F
Izod impact notched (@ 3.2 mm, 23ºC), XY, XZ, YX, YZ, ZX, ZY 3 KJ/m2
Shore Hardness D, XY, XZ, YX, YZ, ZX, ZY 82
